VSP PROCESSING, MODELING & INTERPRETATION

---

Comprehensive end-to-end processing workflows for multi-component Vertical Seismic Profile (VSP) surveys, delivering high-resolution well-centric imaging and quantitative reservoir characterization.

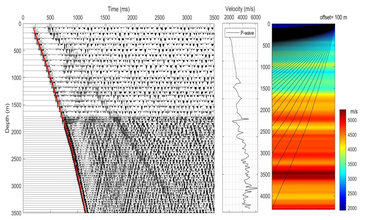

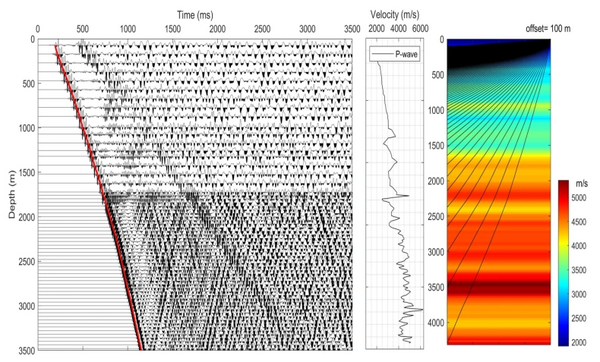

• Zero-offset VSP
• Offset VSP
• Walkaway VSP
• Multi-azimuth VSP
• 3C / 4C borehole data

• Geometry verification and depth calibration
• Tool orientation correction and component rotation (XYZ → ZRT/LQT)

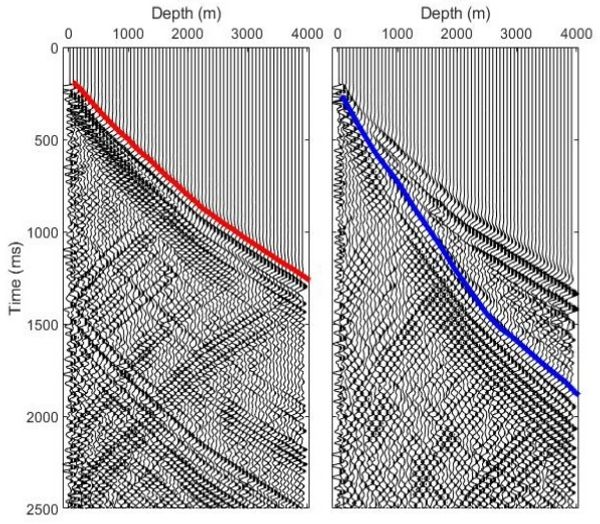

• First-break picking and wavefield separation
• Deconvolution and wavelet shaping
• Coherent and random noise attenuation
• Upgoing/downgoing wavefield separation
• Tube-wave and guided-wave suppression

• Interval, RMS, and average velocity estimation
• VTI/HTI anisotropy parameter estimation
• Time–depth relationship calibration
• Corridor stack generation
• Checkshot and well tie integration

• VSP-CDP transform
• Pre-stack time migration
• Pre-stack depth migration
• Reverse Time Migration (RTM) for VSP
• High-resolution imaging around the borehole
• Multi-azimuth fracture imaging

• Multi-component polarization analysis
• Shear-wave splitting and fracture analysis
• Q-attenuation estimation
• Elastic parameter extraction
• AVO/AVA analysis from walkaway VSP
• Synthetic seismogram generation and seismic tie

Provides accurate depth positioning, reduces structural uncertainty, and improves depth conversion reliability. Precise calibration of seismic time to well depth using zero-offset and multi-offset VSP data:

• Checkshot and interval velocity computation
• Anisotropic time–depth relationship refinement
• Phase and wavelet alignment
• Multi-component integration (PP & PS)
• Seismic-to-well correlation optimization

Enhances reservoir interpretation confidence and inversion stability. High-fidelity synthetic modeling for robust seismic-to-well integration:

• Wavelet extraction from VSP corridor stacks
• Convolutional and elastic synthetic modeling
• PP and PS synthetic generation
• Angle-dependent synthetic traces
• Calibration with surface seismic amplitudes

Delivers superior vertical resolution and improved imaging beneath complex overburden. Detailed imaging of the subsurface around the borehole:

• Upgoing wavefield isolation
• Corridor stack generation
• VSP-CDP transform
• Pre-stack time and depth migration
• Reverse Time Migration (RTM) for complex structures

Supports improved surface seismic demultiple workflows and model validation. Accurate identification and modeling of multiple energy using VSP data:

• Surface-related multiple characterization
• Interbed multiple analysis
• Model-based multiple prediction at well position
• Multiple wavefield separation

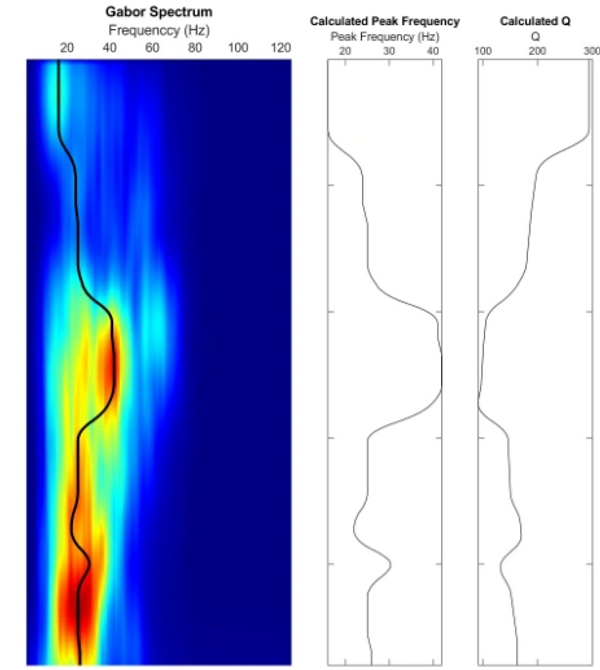

Provides insights into fluid effects, fracture density, and lithological variations. Advanced attenuation analysis for reservoir characterization:

• Spectral ratio and centroid shift methods
• Frequency-dependent amplitude decay analysis
• Interval Q estimation
• Azimuthal Q anisotropy evaluation
• Integration with rock physics and fracture studies

Ensures acquisition efficiency, cost optimization, and maximum imaging resolution around the wellbore. Comprehensive pre-acquisition studies to ensure optimal survey geometry, illumination, and reservoir detectability:

• Illumination and ray-path analysis
• Offset and azimuth optimization
• Tool configuration and receiver spacing design
• Frequency bandwidth feasibility assessment
• Signal-to-noise ratio prediction
• Modeling of anisotropic and complex overburden effects
• Risk assessment for target detectability

Enables reliable fracture detection, orientation estimation, and intensity quantification prior to acquisition or as part of integrated reservoir characterization studies. Advanced anisotropic and azimuthal modeling workflows to predict fracture-induced seismic signatures:

• VTI / HTI elastic modeling
• Shear-wave splitting simulation
• Azimuthal AVO/AVA response prediction
• Amplitude and traveltime anisotropy analysis
• Q anisotropy modeling
• Fracture density and orientation sensitivity studies
